EWOUDE

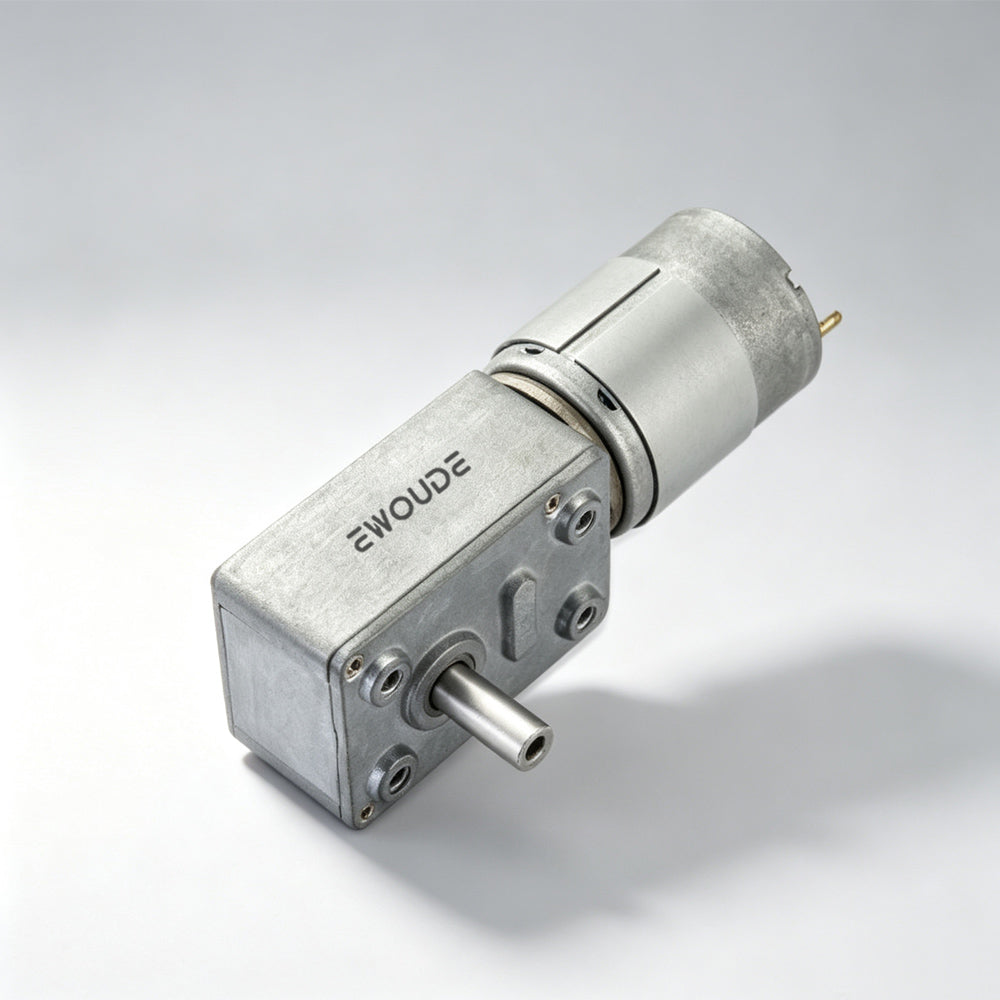

EW-4632GR385
EW-4632GR385
- Worm gear mechanism with reverse self-locking capability, holding load position when powered off
- Ten reduction ratios covering output speeds from 32 to 1013 rpm, especially suited for ultra-low-speed, high-reduction-ratio applications
- Rated output torque of 8 kgf·cm with instantaneous shock resistance up to 15 kgf·cm
- Ultra-compact housing at only 46 mm length, ideal for space-constrained small devices
- Dual-voltage platform (6V / 24V) compatible with AD-R3157 series motors
- Typical applications: smart door locks, small robots, electric toys, precision instrument drives, camera gimbals, small home appliances
All gearbox and motor parameters are customizable. Offering professional gearbox design services and custom gearbox design tailored to your needs.
Product Description
Share your project application requirements with us
The EWOUDE team extends a warm welcome to you. We will fully figure out your project demands beforehand and tailor matching technical solutions for you. This will streamline on-site communication, allowing us to resolve all your questions efficiently. We’re eager to discuss details and establish long-term cooperation with you!
