Gearbox Design
Custom Design
Gearbox configurations are developed around your application requirements, including gear ratio, output torque, input speed, installation space, and mechanical interface. Our engineering team evaluates gear arrangement, housing structure, shaft configuration, and material selection to develop a gearbox matched to the required performance and operating conditions.

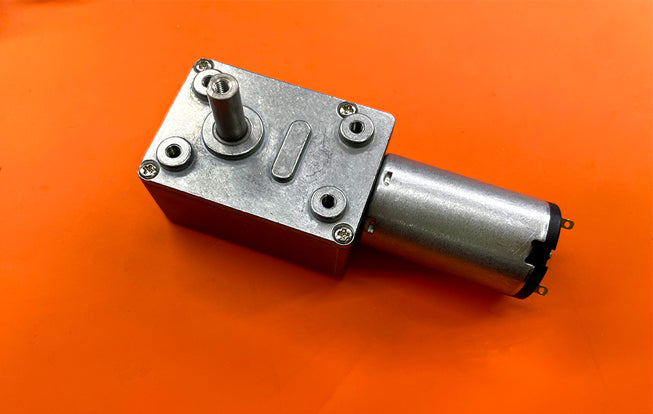

Rapid Prototyping
Rapid prototypes allow key mechanical and performance requirements to be evaluated before mass production. Prototype samples can be used to verify gear engagement, dimensions, mounting interfaces,output performance, and assembly fit, helping identify and refinedesign issues at an early stage.

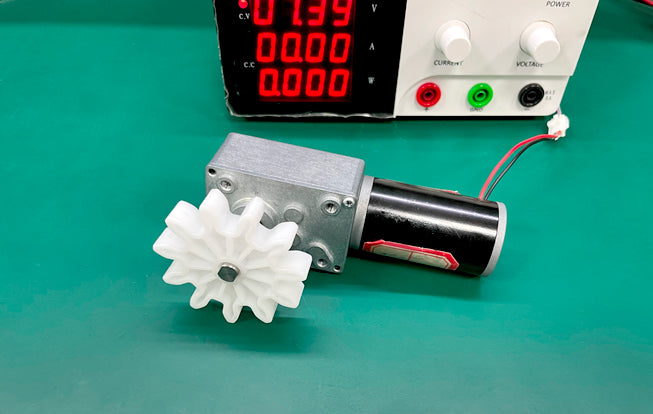

Design Validation
Gearbox prototypes are evaluated against defined application requirements before production release. Validation can cover output torque, speed, gear operation, mechanical fit, noise, durability,and operating performance, with test results used to confirm or refine the final design.

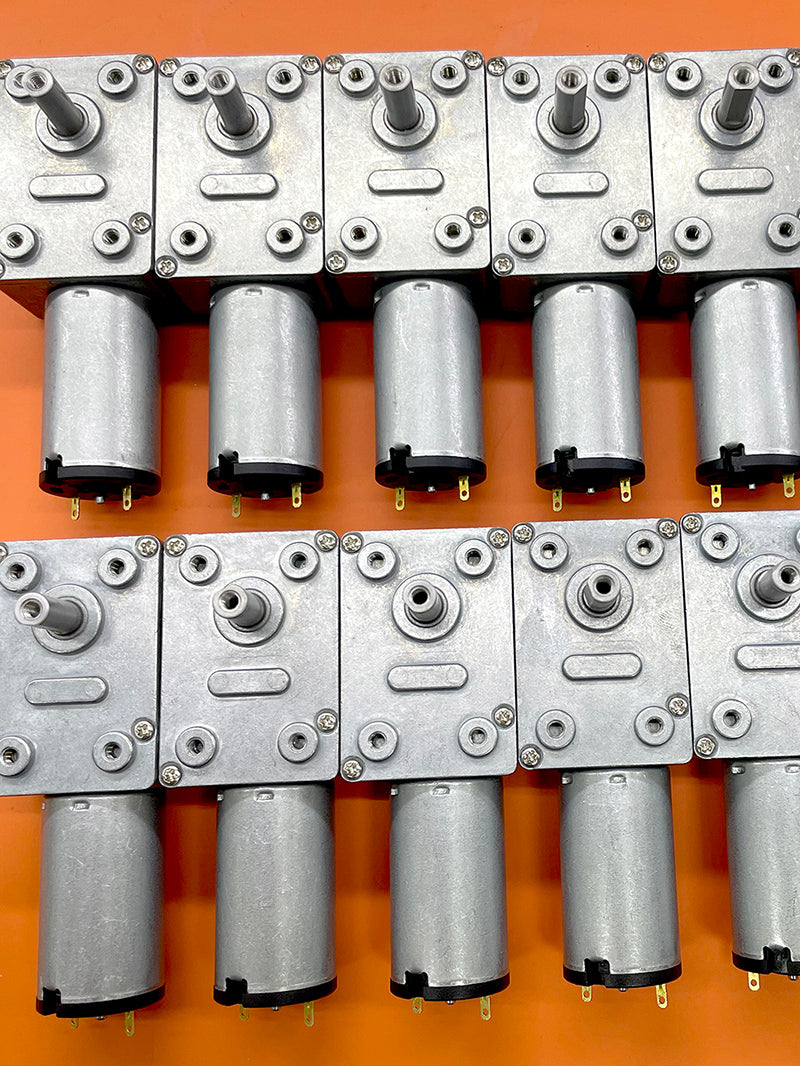

OEM & ODM Manufacturing
Once the gearbox design is validated, EWOUDE supports both OEM and ODM manufacturing from prototype to volume production. We can manufacture according to finalized customer specifications or provide further design optimization and customization based on application requirements. Production, assembly, quality control, and supply are coordinated according to the final project requirements and production volume.
Custom Gearbox Design Services
EWOUDE provides custom gearbox design based on the mechanical and performance requirements of your application. Our engineering team evaluates key factors such as gear ratio, output torque, input speed, dimensions, mounting configuration, noise requirements, and operating onditions to develop a gearbox configuration matched to the application.
Gearbox Engineering & Configuration
| Design Parameter | What We Consider |
|---|---|
| Gear Ratio | Required speed reduction and output performance |
| Output Torque | Load and application requirements |
| Input Speed | Motor speed and operating conditions |
| Gearbox Dimensions | Available installation space |
| Output Shaft | Shaft size, geometry and mounting requirements |
| Gear Material | Application, load and durability requirements |
| Noise & Efficiency | Operating environment and performance targets |
| Mounting | Mechanical interface and installation constraints |
End-to-End Gearbox Development Partnership
Whether you need a compact planetary gearbox for a smart home actuator or a high-torque drive unit for industrial automation, our engineering team works with you from initial specification through final production. We support the full development cycle: requirement analysis, mechanical design, prototype fabrication, performance validation, and volume supply.
We can also support motor and gearbox configuration for applications requiring an integrated motion solution.
Start Your Gearbox Project
Tell us about your application and requirements. Our engineering team will respond within 1 business day.
