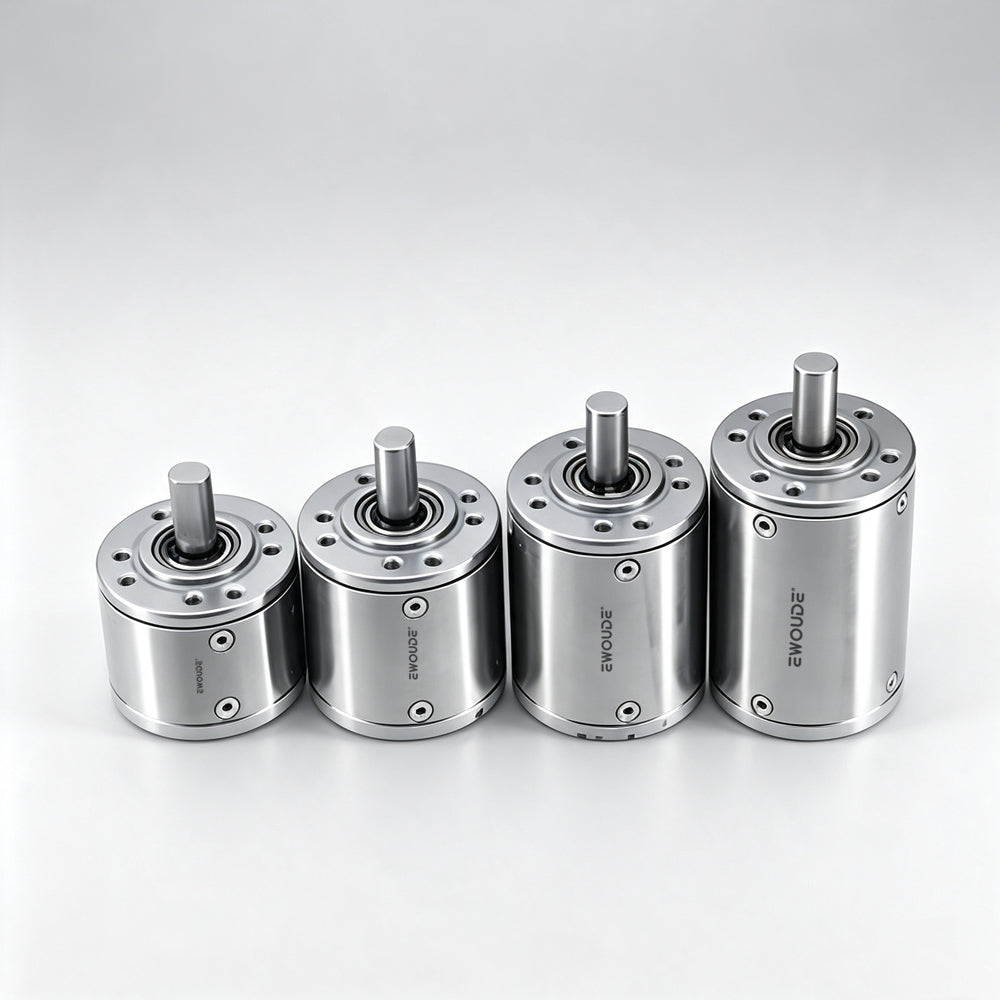

38mm High Performance Planetary Gearbox
38mm High Performance Planetary Gearbox
Product Description
| Gearbox Housing Height(L) | Efficiency | Reduction Ratio1 | Reduction Ratio2 | Reduction Ratio3 | Reduction Ratio4 | Reduction Ratio5 | Gear Ratio Combination |
|---|---|---|---|---|---|---|---|
| 1-Stage (L=32mm) | 90% | 4 | 6 | — | — | — | |
| 2-Stage (L=41.5mm) | 81% | 14 | 24 | 36 | — | — | 4.0X4.0/ 4.0X6.0 / 6.0X6.0/ |
| 3-Stage (L=51.2mm) | 73% | 64 | 96 | 144 | 216 | — | 4.0X4.0X4.0/ 4.0X4.0X6.0 / 6.0X6.0X6.0 |
| 4-Stage (L=60.7mm) | 66% | 256 | 384 | 576 | 864 | 1296 | 4.0X4.0X4.0X4.0/4.0X 4.0X4.0X6.0 / 4.0X6.0X6.0X6.0// 6.0X6.0X6.0X6.0 |
Drawing
