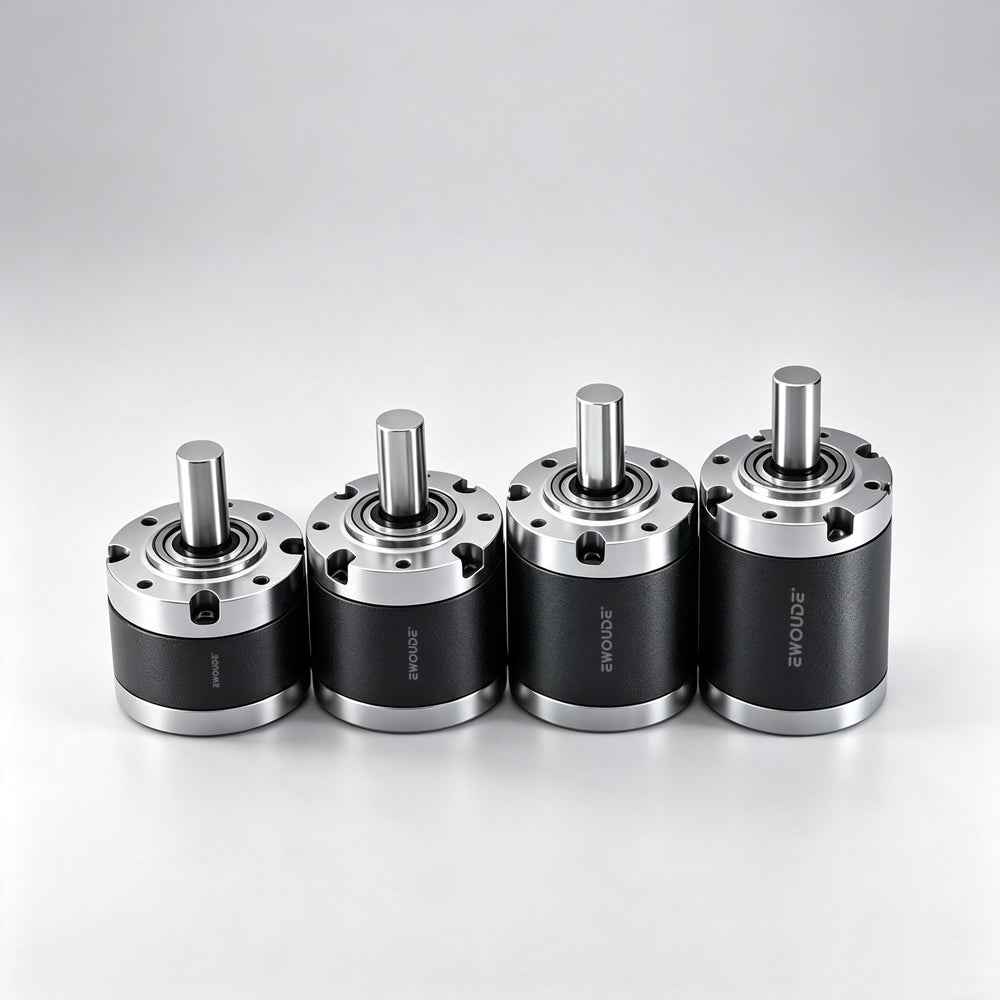

36mm High Performance Planetary Gearbox
36mm High Performance Planetary Gearbox
Product Description
| Gearbox Housing Height(L) | Efficiency | Reduction Ratio1 | Reduction Ratio2 | Reduction Ratio3 | Reduction Ratio4 | Reduction Ratio5 | Gear Ratio Combination |
|---|---|---|---|---|---|---|---|
| 1-Stage (L=28.5mm) | 90% | 3.7 | 5.18 | 4.29 | — | — | |
| 2-Stage (L=34.7mm) | 81% | 14 | 19 | 27 | 22 | — | 3.7X3.7/ 3.7X5.18 / 5.18X5.18/ 5.18X4.29 |
| 3-Stage (L=40.9mm) | 73% | 50 | 71 | 100 | 139 | 115 | 3.7X3.7X3.7/ 3.7X3.7X5.18 / 3.7X5.18X5.18/ 5.18X5.18X5.18/ 5.18X5.18X4.29 |
| 4-Stage (L=47.1mm) | 66% | 189 | 263 | 369 | 516 | 721 | 3.7X3.7X3.7X3.7/ 3.7X3.7X3.7X5.18 / 3.7X3.7X5.18X5.18/ 3.7X5.18X5.18X5.18/ 5.18X5.18X5.18X5.18 |
Drawing
