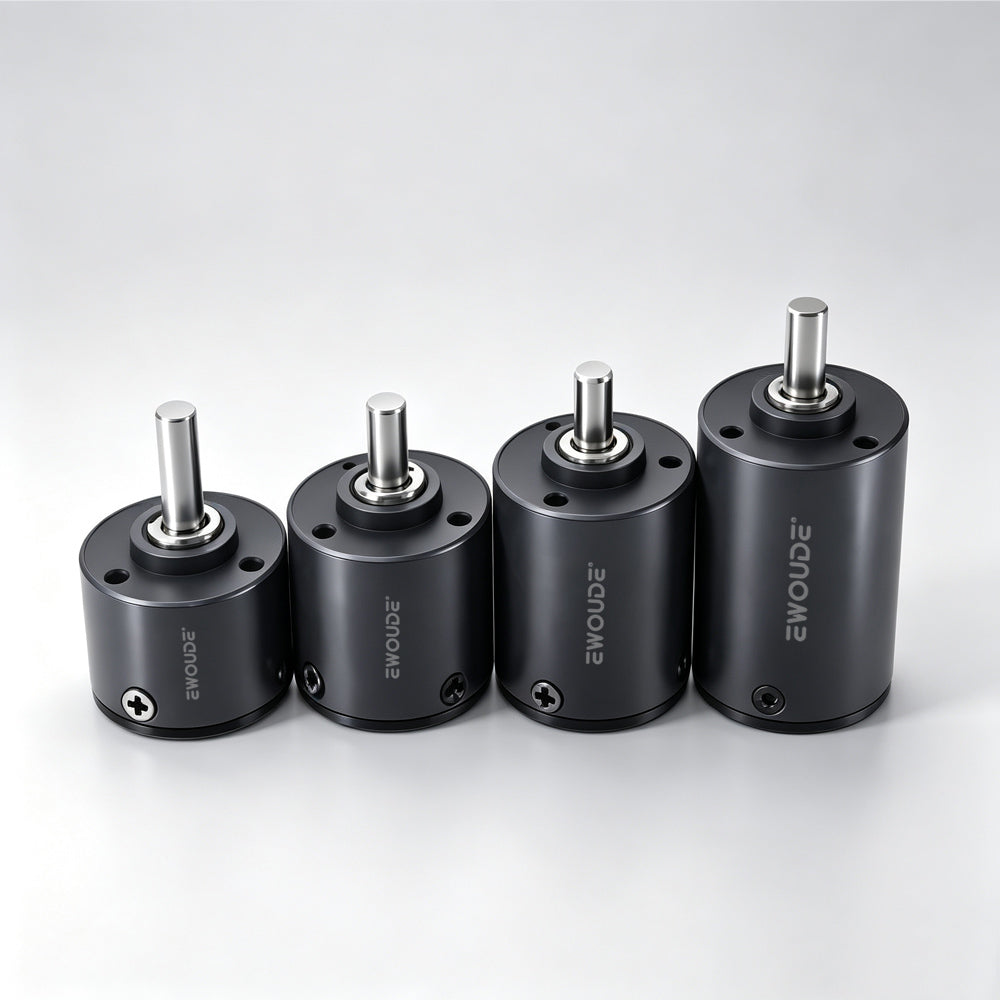

20mm High Performance Planetary Gearbox
20mm High Performance Planetary Gearbox
Diameter：20 mm
Voltage Range：3-24 V
Reduction Ratio：4-850
Max. Transmittable Power：8W
Max. Continuous Torque：1.9Nm
Max. Continuous Input Speed：16,000 rpm
Rated Speed Range：6-1875rpm
Operating Temperature：-30…+100℃
View full details
Product Description
| Gearbox Housing Height(L) | Efficiency | Reduction Ratio1 | Reduction Ratio2 | Reduction Ratio3 | Reduction Ratio4 | Reduction Ratio5 | Gear Ratio Combination |
|---|---|---|---|---|---|---|---|
| 1-Stage (L=15.3mm) | 90% | 4.38 | 5.4 | — | — | — | |
| 2-Stage (L=19.5mm) | 81% | 19 | 24 | 29 | — | — | 4.38X4.38 / 4.38X5.4 / 5.4X5.4 |
| 3-Stage (L=23.7mm) | 73% | 84 | 104 | 128 | 157 | — | 4.38X4.38X4.38 /4.38X4.38X5.4 /4.38X5.4X5.4 /5.4X5.4X5.4 |
| 4-Stage (L=27.9mm) | 66% | 370 | 455 | 560 | 690 | 850 |
4.38X4.38X4.38X4.38 /4.38X4.38X4.38X5.4 /4.38X4.38X5.4X5.4 /4.38X5.4X5.4X5.4/5.4X5.4X5.4X5.4 |
Drawing
