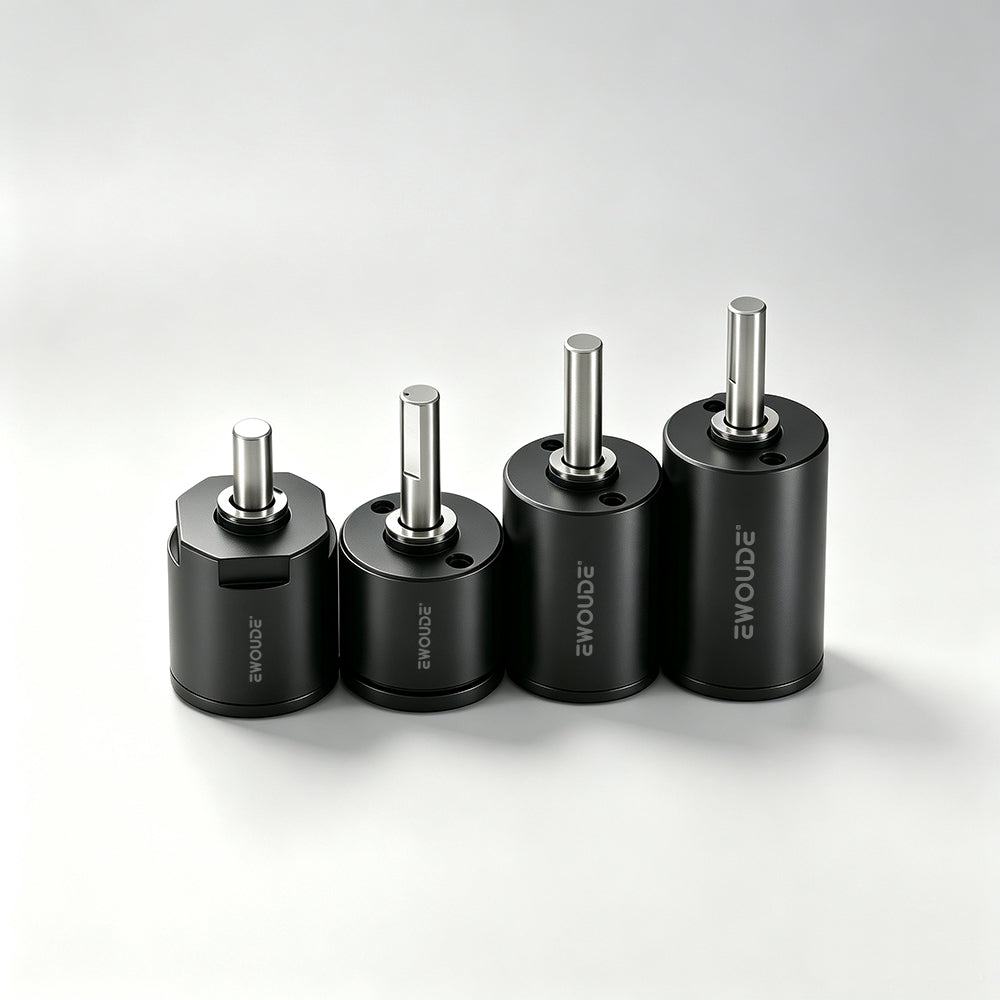

12mm High Performance Planetary Gearbox
12mm High Performance Planetary Gearbox
Diameter：12 mm
Voltage Range：12 V
Reduction Ratio：4-1526
Max. Transmittable Power：13.2 W
Max. Continuous Torque：80,000 gf.cm
Max. Continuous Input Speed：≤ 15,000 rpm
ated Speed Range：28-7500 rpm
Operating Temperature：-20…+100℃
View full details
Product Description
| Gearbox Housing Height(L) | Efficiency | Reduction Ratio1 | Reduction Ratio2 | Reduction Ratio3 | Reduction Ratio4 | Reduction Ratio5 | Gear Ratio Combination |
|---|---|---|---|---|---|---|---|
| 1-Stage (L=10.5mm) | 90% | 4 | 5 | — | — | — | 4.0X4.5 / 4.0X5.0 / 5.0X5.0 |
| 2-Stage (L=13.8mm) | 81% | 16 | 20 | 25 | — | — | 4.0X4.0X4.0 / 4.0X4.0X5.0 / 4.0X4.5X5.0 / 5.0X5.0X5.0 |
| 3-Stage (L=18.7mm) | 73% | 64 | 80 | 100 | 125 | — | 4.0X4.0X4.0 / 4.0X4.0X5.0 / 4.0X4.5X5.0 / 5.0X5.0X5.0 |
| 4-Stage (L=18.7mm) | 66% | 256 | 327 | 465 | 506 | 625 | 4.0X4.0X4.0X4.0 / 4.0X4.0X4.0X5.0 / 5.0X5.0X5.0X5.0 |
Drawing
